Wire mesh fencing
Mostostal Met manufactures fence gates and wickets as per custom orders.
The product range includes end-to-end fencing systems made from woven wire mesh with a hot-dip galvanised or PVC finish. The product range is complemented by all the essential accessories and parts for building fences, including posts, tension wire, tensioners, post clamps, and barbed wire. Mostostal Met also manufactures non-standard fence gates and wickets on special request.
-
Use

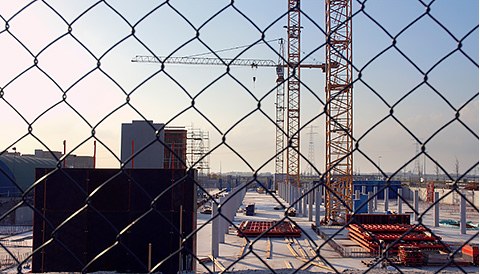

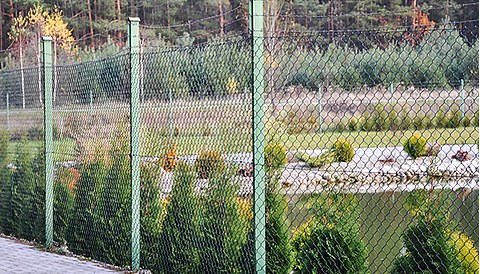

Woven wire mesh is a very popular construction material used for building fences around private homes, sports facilities, playgrounds, public parks and gardens, industrial plants, warehouse facilities, and public buildings.
Technical specifications
Fencing made from PVC-coated chain link mesh:
height from 500 mm to 5,000 mm; wire mesh size from 30×30 mm to 60×60 mm; wire dia. from ø1.6 to ø2.8 mm.
Fencing made from hot-dip galvanised chain link mesh:
height from 500 mm to 5,000 mm; wire mesh size from 30×30 mm to 60×60 mm; wire dia. from ø2.0 to ø4.0 mm.
| Mesh size [mm] |
Wire dia. [mm] |
Mesh width [mm] |
|---|---|---|
| 30×30 | ø2,0 |
500 1000 1250 1500 1750 2000 3000 |
| ø2,5 | ||
| 40×40 | ø2,0 | |
| ø2,5 | ||
| ø2,8 | ||
| ø3,0 | ||
| 50×50 | ø2,0 | |
| ø2,5 | ||
| ø2,8 | ||
| ø3,0 | ||
| ø3,5 | ||
| 60×60 | ø2,0 | |
| ø2,5 | ||
| ø2,8 | ||
| ø3,0 | ||
| ø3,5 | ||
| ø4,0 |
| Mesh size [mm] |
Wire dia. [mm] |
Mesh width [mm] |
|---|---|---|
| 30×30 | ø1,6 |
500 1000 1250 1500 1750 2000 3000 |
| ø1,8 | ||
| ø2,0 | ||
| 40×40 | ø1,8 | |
| ø2,0 | ||
| ø2,5 | ||
| 50×50 | ø1,8 | |
| ø2,0 | ||
| ø2,5 | ||
| ø2,8 | ||
| 60×60 | ø1,8 | |
| ø2,0 | ||
| ø2,5 | ||
| ø2,8 |
Installation method
Installation accessories
Support mounting cap
Bush with screw
Bush with hook
Cap
Tensioner with bolt
Strap
Hook tensioner
Tensioning wire
-
Colours

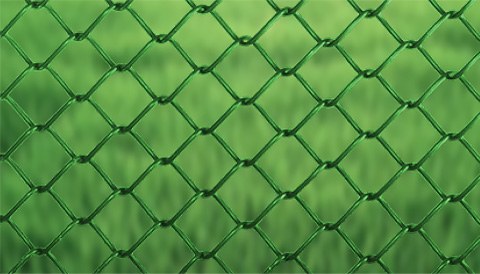

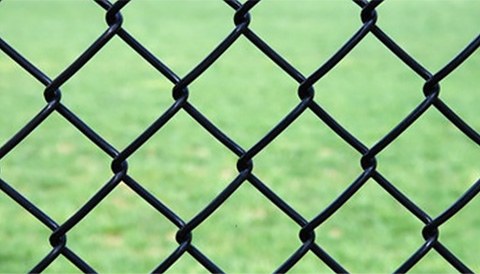

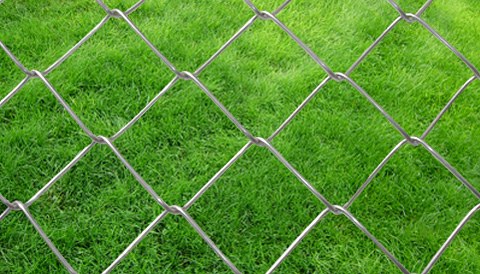

The fences are made either from hot-dip galvanised or PVC coated meshes in a wide selection of colours (including RAL 9005 black and RAL 6505 green).
Other colours are available on request.
Gates and wickets
Mostostal Met carries a wide selection of fencing gates and wickets manufactured as per custom specifications.

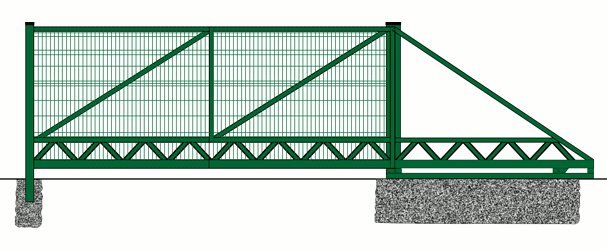

Gate > 8 running metres
Wicket
